DRS-400 (2X) HEAT SHRINK TUBE

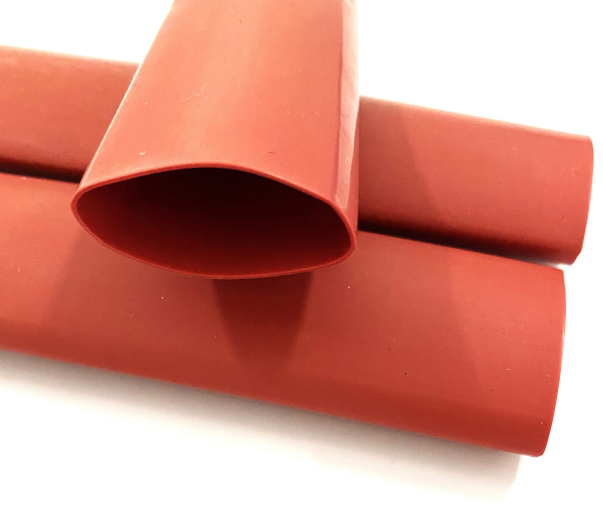

φ400mm heat shrink tube is made of radiation-crosslinked polyolefin material, it boasts excellent physical, chemical, and electrical properties. its main functions include electrical insulation of connectors, rust and corrosion prevention of solder joints, mechanical protection, and wire harness protection. it is widely used in electronics, communications, machinery, and automotive manufacturing.
product features
● Shrinkage Ratio: 2:1
● Initial Shrinkage Temperature: ≥ +84℃
● Full Shrinkage Temperature: ≥ +120℃
● Operating Temperature: -55℃～+125℃
● Environmentally friendly, high strength, elastic
● Environmental Certification: RoHS
● Standard Colors: Red, Yellow, Green (Other colors available upon request)
Specification sheet
| Size | suitable for busbar | Diametermm | Size after shrinkmm | package m/roll | |
| Diameter | Thickness | ||||
| 10kV 15/8 | 20/15 | 15 | ≤8 | 2.10±0.30 | 25 |
| 10kV 20/10 | 20/15 | 20 | ≤10 | 2.10±0.30 | 25 |
| 10kV 25/12 | 25/18 | 25 | ≤12.5 | 2.10±0.30 | 25 |
| 10kV 30/15 | 32/20 | 30 | ≤15 | 2.10±0.30 | 25 |
| 10kV 40/20 | 40/30 | 40 | ≤20 | 2.30±0.30 | 25 |
| 10kV 50/25 | 50/35 | 50 | ≤25 | 2.30±0.30 | 25 |
| 10kV 60/30 | 60/45 | 60 | ≤30 | 2.30±0.30 | 25 |
| 10kV 70/35 | 70/50 | 70 | ≤35 | 2.30±0.30 | 25 |
| 10kV 80/40 | 80/55 | 80 | ≤40 | 2.30±0.30 | 25 |
| 10kV 100/50 | 100/75 | 100 | ≤50 | 2.40±0.30 | 25 |
| 10kV 120/60 | 120/85 | 120 | ≤60 | 2.40±0.30 | 25 |
| 10kV 150/75 | 150/105 | 150 | ≤75 | 2.40±0.30 | 25 |
| 10kV 180/90 | 180/120 | 180 | ≤90 | 2.40±0.30 | 25 |
| 10kV 210/105* | 210/140 | 210 | ≤105 | 2.40±0.30 | 25 |
| 10kV 250/125* | 250/180 | 250 | ≤125 | 2.40±0.30 | 25 |
| 10kV 300/150* | 300/210 | 300 | ≤150 | 2.40±0.30 | 25 |
| 10kV 400/150* | 400 | 200 | 2.40±0.30 | 25 | |
1.Inquiry:Every inquiry for heat shrinkable tube should be appreciated and answered in time.
2.Sample:The sample of heat shrinkable tube can be customized for free, you just need to pay for the freight.
3.Price:The price of heat shrinkable tube can be discounted if you order again.
4.Prepare & shipment :These heat shrinkable tube would be prepared after your deposit and confirmation in 7 days.
5.Cooperation:We kindly welcome every customer to visit our factory and we can cooperate with a happy and beneficial atmosphere in the future.
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. Can I get samples?
A: We offer free samples by express, but you need pay the express charge.
Q3. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4. How about your delivery time?
A: Generally, it will take 5-10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. How about the quality?
A:The products are made of imported high elasticity silicon rubber. Also,every order will not be sent over to you before it has been tested fine.
