Product Description

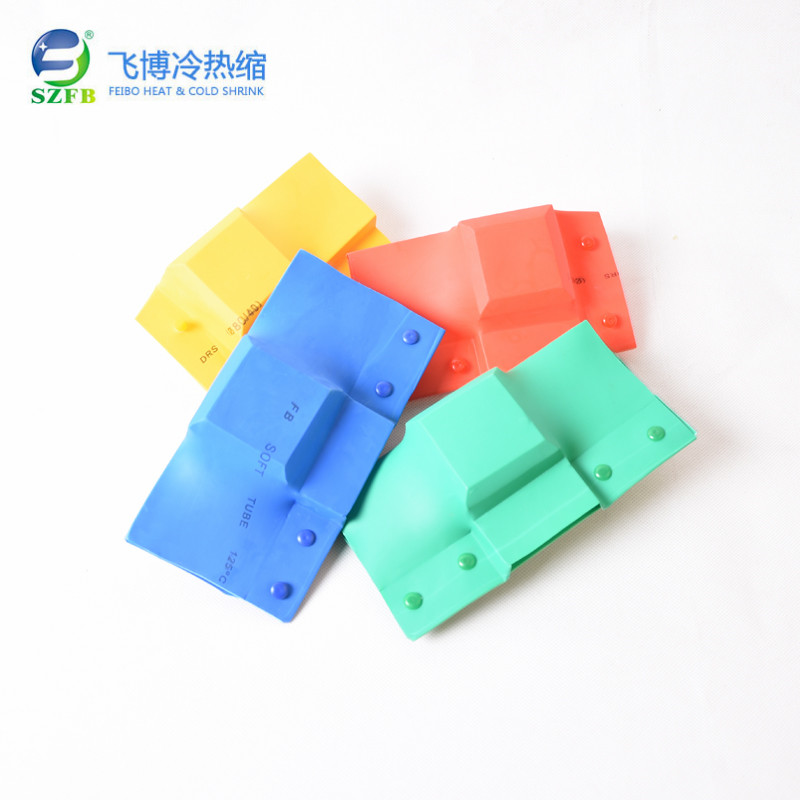

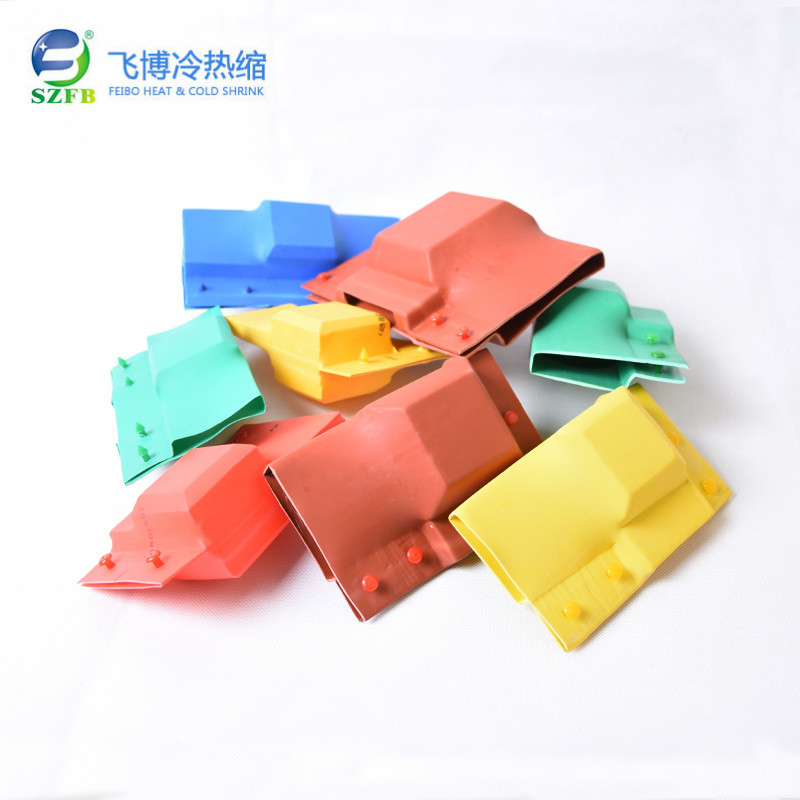

The 0.4-1kV Busbar Lap Joint Heat Shrink Insulation Cover I-T-L-X Clip-on is designed for reliable insulation and protection of copper and aluminum busbar joints in medium to high voltage power distribution systems. Available in I-type, T-type, and L-type configurations, this cover provides a complete solution for straight-through, branching, and corner busbar connections. The heat shrink material ensures a tight fit after heating, while the snap-on design allows tool-free installation and easy removal for maintenance.
Product Parameters
| Item | Models | Item | Models | Item | Models |
| singel row | Ikv-25*5+25*5 | double row | Ikv-25*5+25*5*2 | Triple busbar lap joint | Ikv-25*5+25*5*3 |
| Ikv-30*5+30*5 | Ikv-30*5+30*5*2 | Ikv-30*5+30*5*3 | |||
| Ikv-40*5+40*5 | Ikv-40*5+40*5*2 | Ikv-40*5+40*5*3 | |||
| Ikv-50*5+50*5 | Ikv-50*5+50*5*2 | Ikv-50*5+50*5*3 | |||
| Ikv-60*5+60*6 | Ikv-60*5+60*6*2 | Ikv-60*5+60*6*3 | |||
| Ikv-70*10+70*10 | Ikv-70*10+70*10*2 | Ikv-70*10+70*10*3 | |||
| Ikv-80*10+80*10 | Ikv-80*10+80*10*2 | Ikv-80*10+80*10*3 | |||
| Ikv-90*10+90*10 | Ikv-90*10+90*10*2 | Ikv-90*10+90*10*3 | |||
| Ikv-100*10+100*10 | Ikv-100*10+100*10*2 | Ikv-100*10+100*10*3 | |||
| Ikv-120*10+120*10 | Ikv-120*10+120*10*2 | Ikv-120*10+120*10*3 | |||
| Ikv-150*10+150*10 | Ikv-150*10+150*10*2 | Ikv-150*10+150*10*3 |
Product Shapes & Applications
| Shape | Description | Application |
|---|---|---|
| I-Type | Straight cover for linear busbar runs | Straight busbar connections and continuous runs |
| L-Type | Elbow cover for 90° bends | Busbar bends and corner connections-3 |
| T-Type | Tee cover for branch connections | Branch busbar connections and tee joints |
Applications
Switchgear and Distribution Boards: Insulation protection for busbars in LV/MV switchgear-2-3
Substations: Protection of busbar connections and transformer inlet/outlet lines-3-4
Power Plants: Insulation of copper busbar nodes and connections-11
Industrial Electrical Systems: Busbar protection in manufacturing and processing facilities-2
Renewable Energy: Solar and wind power electrical connection protection
Retrofit Projects: Safety upgrades for existing electrical installations
Installation Guide
Select the correct shape and size for your busbar configuration.
Clean the busbar surface to remove dust and contaminants.
Position the protection cover over the busbar connection area.
Secure the cover using cable ties, plastic nuts and bolts, or latches-4.
Ensure the cover fully encloses all live parts.
Inspect for proper fit and complete coverage.
