The 0.6/1kV Heat Shrinkable Cable Intermediate Joint Kit provides reliable insulation, waterproof sealing, and mechanical protection for low voltage cable connections.
Made from high-quality cross-linked polyolefin materials, it offers excellent aging resistance and long-term stability. Suitable for XLPE, PVC, and EPR insulated cables with copper or aluminum conductors.
The complete kit includes all components needed for installation. Easy heat-shrink application saves time and ensures consistent performance.
| Model No. | Cable Section (mm²) | Core Count | Application |
|---|---|---|---|
| [JSY]-1/3×0 | 10-16 mm² | 3 Cores | Intermediate Joint |
| [JSY]-1/3×1 | 25-50 mm² | 3 Cores | Intermediate Joint |
| [JSY]-1/3×2 | 70-120 mm² | 3 Cores | Intermediate Joint |
| [JSY]-1/3×3 | 150-240 mm² | 3 Cores | Intermediate Joint |
| [JSY]-1/3×4 | 300-400 mm² | 3 Cores | Intermediate Joint |
| [JSY]-1/4×0 | 10-16 mm² | 4 Cores | Intermediate Joint |
| [JSY]-1/4×1 | 25-50 mm² | 4 Cores | Intermediate Joint |
| [JSY]-1/4×2 | 70-120 mm² | 4 Cores | Intermediate Joint |
| [JSY]-1/4×3 | 150-240 mm² | 4 Cores | Intermediate Joint |
| [JSY]-1/4×4 | 300-400 mm² | 4 Cores | Intermediate Joint |
| [JSY]-1/5×0 | 10-16 mm² | 5 Cores | Intermediate Joint |
| [JSY]-1/5×1 | 25-50 mm² | 5 Cores | Intermediate Joint |
| [JSY]-1/5×2 | 70-120 mm² | 5 Cores | Intermediate Joint |
| [JSY]-1/5×3 | 150-240 mm² | 5 Cores | Intermediate Joint |
| [JSY]-1/5×4 | 300-400 mm² | 5 Cores | Intermediate Joint |
*Note: "0"=10-16mm², "1"=25-50mm², "2"=70-120mm², "3"=150-240mm², "4"=300-400mm²

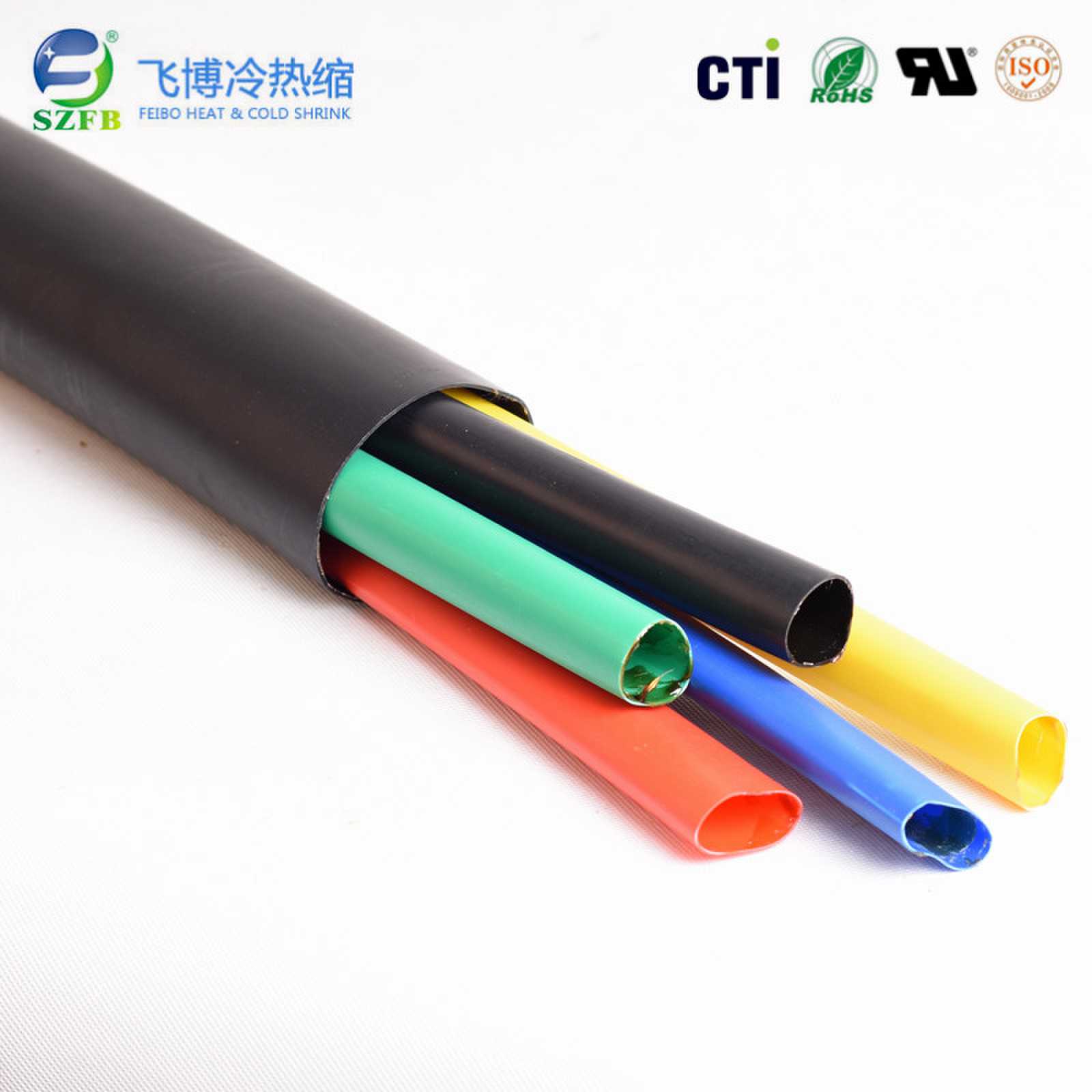

A complete kit includes the following:
Insulation Tube – Main insulating layer, heat-shrinkable material
Outer Jacket Tube – Outer mechanical protection and sealing
Accessory Pack – Includes filler putty, sealing mastic, sandpaper, cleaning wipe, installation instruction manual, etc.
Q1: What is the difference between cable termination and intermediate joint?
A:
Termination kits are used at cable ends (connecting to
switchgear/equipment), while intermediate joints are used to connect two
cable sections together in the middle.
Q2: Can I get samples before bulk order?
A: Yes, sample orders are welcome. Sample cost can be refunded upon bulk order placement.
Q3: What is your MOQ?
A: Regular MOQ is 10 sets. For sample order, 1 set is acceptable.
Q4: How do I choose the correct model for my cable?
A:
You need to know: 1) Cable voltage rating (0.6/1kV), 2) Cable core
count (1/2/3/4/5 core), 3) Cable conductor cross-section area (mm²).
Check our specification table above.
Q5: What tools are needed for installation?
A: Only a propane torch or hot air gun is required. All components are pre-cut and ready to use.
Q6: Do you accept OEM/private label?
A: Yes, we accept custom logo, custom packaging, and custom labeling with certain MOQ requirements .
Q7: What is your warranty policy?
A: We provide 12-month warranty against manufacturing defects.
Q8: How long does the product last?
A: Under normal operating conditions, service life exceeds 20 years
