Product Overview

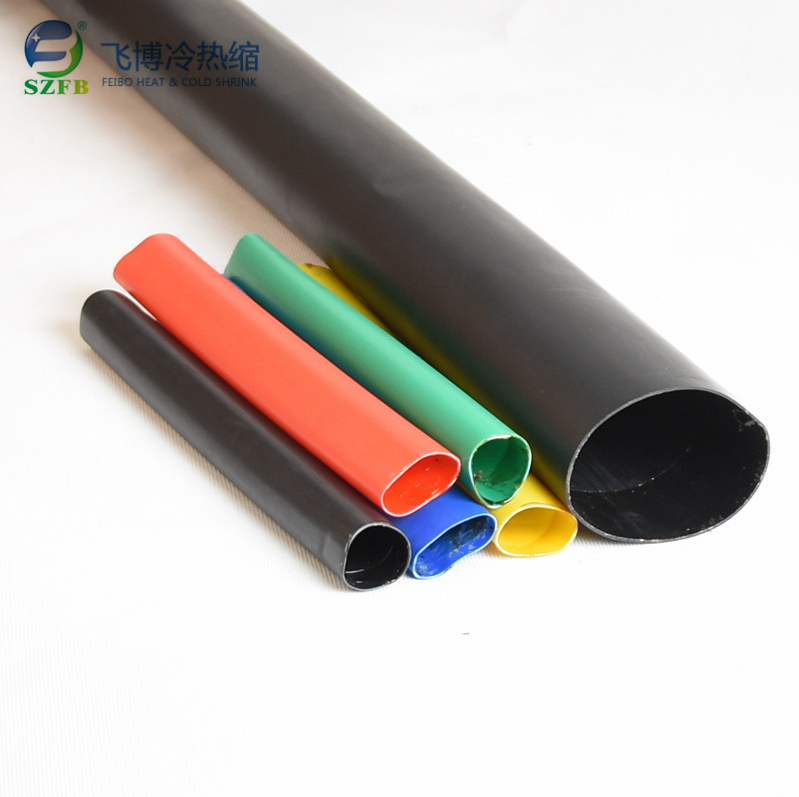

Our 1KV heat shrink joint kit is a high-performance solution designed for splicing and repairing low-voltage power cables. It installs quickly with the application of heat, forming a permanent, sealed insulation barrier that provides exceptional environmental protection and electrical insulation performance. Widely used in municipal, power, telecommunications, and industrial cable projects.

Key Features

• Excellent Sealing: Integrated high-performance hot-melt adhesive melts upon heating to fill all voids, achieving complete sealing, effectively waterproof, moisture-proof, and dust-proof.

• Superior Insulation: The main body is made of radiation-crosslinked polyolefin material, featuring high dielectric strength and stable performance, ensuring long-term safe operation.

• Corrosion & Aging Resistance: Excellent resistance to chemical corrosion and UV rays, suitable for various harsh environments, extends cable lifespan.

• Easy Installation: Requires no special tools. Simply heat with a torch or heat gun to complete installation, significantly saving time and labor costs.

• Mechanical Protection: After shrinking, it forms a tough outer shell, providing good mechanical buffering and protection for the cable connection point.

  Technical Specifications

• Rated Voltage: 1 kV

• Initial Shrink Temperature: ≥ +70°C

• Full Shrink Temperature: ≥ +125°C

• Operating Temperature: -45°C to +110°C

• Longitudinal Shrinkage: ≤ 8%

• Radial Shrinkage: ≥ 50%

• Environmental Standard: RoHS Compliant

Application Fields

• Intermediate connections and branching of underground cables.

• Emergency repair and maintenance of cable faults.

• Substations and distribution networks.

• Cable projects in tunnels and bridges.

• Industrial and mining power facilities.

 Installation Guide (Brief)

1. Prepare the cable: strip and cut according to standard procedures.

2. Connect the conductors and ensure the surface is smooth.

3. Clean the cable surface, slide the joint onto one end of the cable.

4. After connection, move the joint to the splice area and center it.

5. Apply heat evenly from the middle towards the ends or from one end to the other to allow uniform shrinkage.

6. Check to confirm complete shrinkage and even seepage of adhesive.

 Packaging & Warranty

• Standard commercial packaging.

• Customized packaging and LOGO printing services are available.

• Quality guaranteed. We support returns and exchanges for any product quality issues.




•
